Metal-to-metal ball valves | Ball valves | Products

Compared with soft seal ball valves, Sanseco metal-to-metal ball valves have wider working temperature and medium range during working condition, they have the features of reliable and safe sealing performance, long service life, easy operation and less pressure loss. They are mainly used in service of high temperature, high pressure, severe corrosion and solid material containing services such as coal chemical, polysilicon and vitriol/nitric acid industry.

General description	Compared with soft seal ball valves, Sanseco metal-to-metal ball valves have wider working temperature and medium range during working condition, they have the features of reliable and safe sealing performance, long service life, easy operation and less pressure loss. They are mainly used in service of high temperature, high pressure, severe corrosion and solid material containing services such as coal chemical, polysilicon and vitriol/nitric acid industry.
Type	Floating and trunnion mounted ball valves
Size	1/2~24” (DN15~DN600)
Rating	150~2500LB (PN16~PN420)
Body material	Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
Trim	Tungsten carbide, Stellite
Temperature range	-46℃~450℃
Design feature	Metal to metal seal design between ball and seats Double block and bleed Cavity pressure self relief Blowout-proof stem Seat designed with dust-proof and automatic cleaning function Antic-static device

Unique of Sanseco

To be your first choice relying on what we can.

Our commitment to innovation, dedication to quality, and thorough understanding of value set us apart from most other suppliers.

Our system, service and technical expertise are all focused on ensuring each and every order is completed on budget, on time, every time.

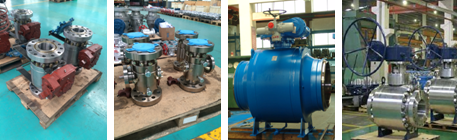

Trunnion Mounted Ball Valves by Sanseco Group

Reliable performance in Long-term operation. Tailored to your needs. Quality from a single source.
