Axial flow check valves | Gate, globe & check | Products

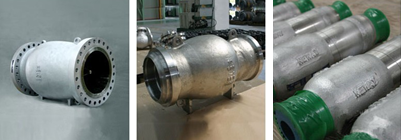

Sanseco axial flow check valves are the streamlined venture port design so as to reduce the pressure loss. This series of valve discs are the only moving part to minimize internal wear and compressed disc spring initiates valve closure as flow slows down and provides quick reaction on flow velocity change. They can be used in a wide range of critical and demanding service applications such as fast reversing reciprocating compressor system or installations where the check valve must be placed in close proximity to the pump inlet or outlet.

General description	Sanseco axial flow check valves are the streamlined venture port design so as to reduce the pressure loss. This series of valve discs are the only moving part to minimize internal wear and compressed disc spring initiates valve closure as flow slows down and provides quick reaction on flow velocity change. They can be used in a wide range of critical and demanding service applications such as fast reversing reciprocating compressor system or installations where the check valve must be placed in close proximity to the pump inlet or outlet.
Type	Gate, globe, check
Size	2~60” (DN50~DN1500)
Rating	150 ~2500LB (PN16~PN420)
Body material	Cast Carbon Steel, Stainless Steel, Alloy Steel
End connection	RF, RTJ, BW
Design feature	Venturi port to reduce pressure loss Spring protection and no impact Low noise and lower water hammer damager Soft seal and second metal to metal seal to ensure fire safe Full series with lugs and support legs No outside leakage
