Api 602 forged steel valves | Gate, globe & check | Products

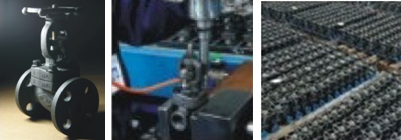

Sanseco compact forged steel valves design is optimized by the most advanced FEA (finite element analysis) in accordance with API 602, EN/ISO15761 and ANSI B16.34. All components are manufactured using CNC machine centers to ensure consistent high quality.

General description	Sanseco compact forged steel valves design is optimized by the most advanced FEA (finite element analysis) in accordance with API 602, EN/ISO15761 and ANSI B16.34. All components are manufactured using CNC machine centers to ensure consistent high quality.
Type	Gate, globe, check
Size	1/2~2” (DN15~DN50)
Rating	150~2500LB (PN16~PN420)
Body material	F316, F304L, F316L, F317, F321, F347, INCONEL, MONEL, H.C.
End connection	NPT, SW, RF, RJT, BW
Design feature	Full die forged structure Solid wedge Bolted or welded bonnet Optional full or reduce port Optional below seal structure (gate and globe) Optional plug or needle disc (globe) Optional lift or swing disc (check) Optional jacket structure(GGC) Optional Cryogenic structure(GGC)
