Cryogenic ball valves | Ball valves | Products

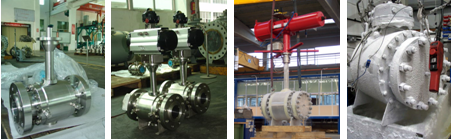

Sanseco cryogenic ball valves are suitable for the service of working temperature down to －196℃ such as LNG, LPG and air separation industry. Sanseco cryogenic trunnion ball valves are produced by the most advanced technology and they are designed with LIP SEAL which can keep valves with excellent sealing performance in ultra-low temperature. Sanseco modern cryogenic test laboratory can test valves up to 48 in.

General description	Sanseco cryogenic ball valves are suitable for the service of working temperature down to －196℃ such as LNG, LPG and air separation industry. Sanseco cryogenic trunnion ball valves are produced by the most advanced technology and they are designed with LIP SEAL which can keep valves with excellent sealing performance in ultra-low temperature. Sanseco modern cryogenic test laboratory can test valves up to 48 in.
Type	Floating and trunnion mounted ball valves (side and top entry)
Size	3/8~24” (DN10~DN600)
Rating	150~1500LB (PN20~PN260)
Body material	Stainless Steel, Cryogenic Alloy Steel, Dual-Stainless steel
Trim	Stainless, LIPSEAL Seal Ring, Cryogenic resistant with nonmetal seal seat/ring
Design feature	Bonnet extended Low fugitive emission control Lip seal Cavity pressure self relief Adopt import seat material of stable low temperature performance The seat and pressure relief structure can be adapt varies working condition Top entry structure is convenience to on-line maintenance

Unique of Sanseco

To be your first choice relying on what we can.

Our commitment to innovation, dedication to quality, and thorough understanding of value set us apart from most other suppliers.

Our system, service and technical expertise are all focused on ensuring each and every order is completed on budget, on time, every time.

Trunnion Mounted Ball Valves by Sanseco Group

Reliable performance in Long-term operation. Tailored to your needs. Quality from a single source.
