Forged steel floating ball valves | Ball valves | Products

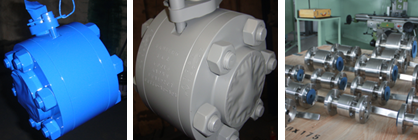

Sanseco forged steel floating ball valves are designed in accordance with ISO17292 featuring 2 pc split body or 3 pc split body, ideal for medium or high pressure services and wide temperature range (-196℃~500℃). It can substitute the small size trunnion mounted ball valves to save cost. Sanseco full range of forged steel floating ball valves are fire safe test certified by Llody’s Register per API 607 and API 6FA.

General description		Sanseco forged steel floating ball valves are designed in accordance with ISO17292 featuring 2 pc split body or 3 pc split body, ideal for medium or high pressure services and wide temperature range (-196℃~500℃). It can substitute the small size trunnion mounted ball valves to save cost. Sanseco full range of forged steel floating ball valves are fire safe test certified by Llody’s Register per API 607 and API 6FA.
2 pc forged steel	Size	1/2~4” (DN15~DN100)
	Rating	150~2500LB (PN16~PN420)
	Body material	Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
	Trim	Carbon Steel, Stainless Steel, Duplex Steel
	End connection	RF, RTJ, BW, SW, NPT
3 pc forged steel	Size	1/2~2” (DN15~DN100)
	Rating	150~2500LB (PN16~PN420)
	Body material	Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
	Trim	Carbon Steel, Stainless Steel, Duplex Steel
	End connection	SW, NPT
Design feature		Full port or reduced port Fire safe certified Blowout-proof stem Anti-static Low emission control Optional locking device ISO 5211 top flange
